The exclusive TUPY agent
for the Middle East
Reliable
quality
Engineered
design
Long service life
and high strength

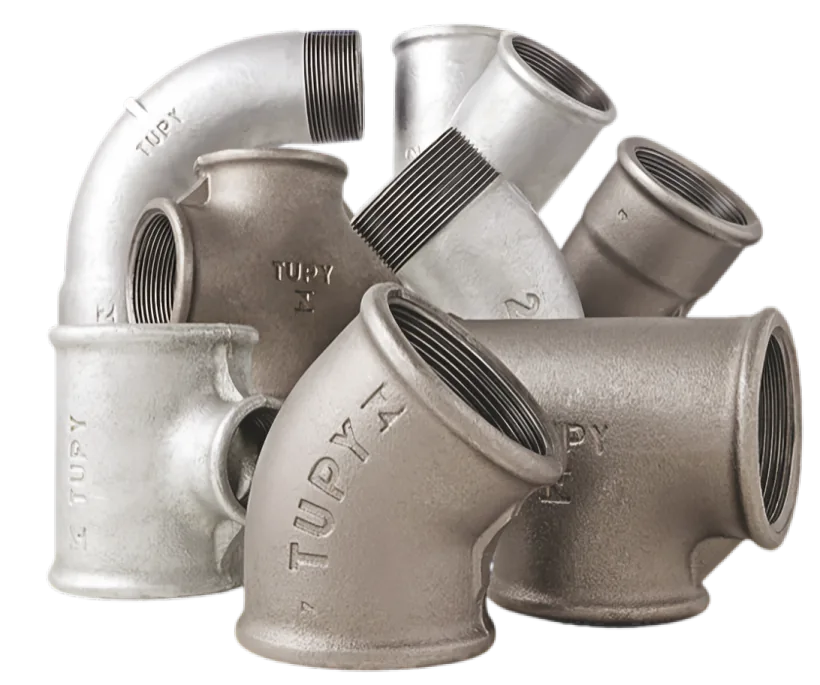

TUPY BSP Threaded Fittings
Fittings made to the BSP thread standards.

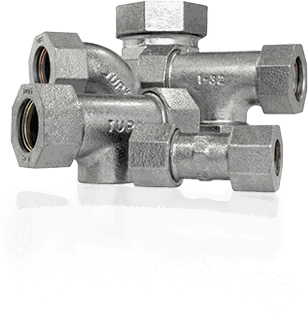

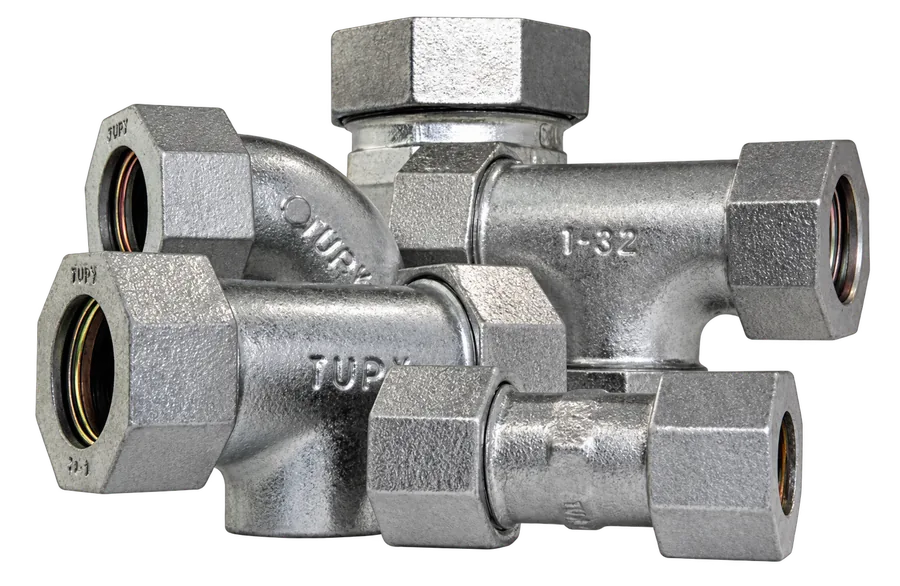

TUPYPRES Press System
A mechanical compression system — the pipe is inserted and the nut tightened with an ordinary wrench.

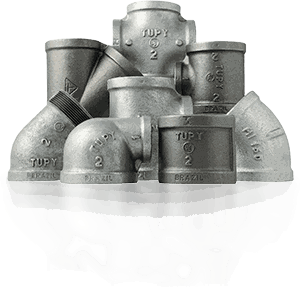

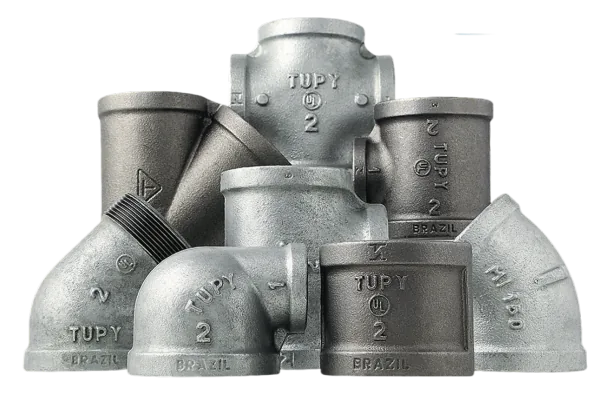

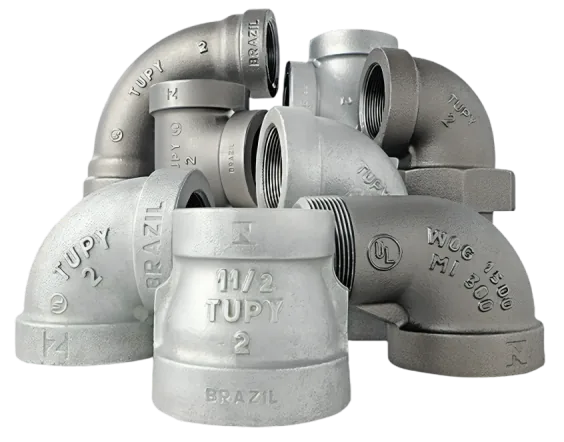

TUPY NPT Threaded Fittings
Fittings made to the NPT thread standards.
TUPY is one of the world's established manufacturers of threaded and industrial pipe fittings, with more than 85 years of production behind it and every fitting made to international standards. Its quality, durability and the breadth of the range have put TUPY fittings into building services, fire protection, and oil and gas work in many countries.
More about us
19,000+
Employees
4+
Plants in Brazil
85+
Years of production
20,000+
Product references
More about us
Malleable cast iron threaded fittings, galvanised and black. Technical specification, figure number and dimensions are on each fitting's own page.
Quality (ISO 9001), environmental (ISO 14001), and occupational health and safety (ISO 45001) management systems — certified by Bureau Veritas.
National Institute of Metrology, Quality and Technology — the Brazilian national quality and safety standard.
Brazilian Association of Technical Standards — the Brazilian technical and safety standard.
German Technical and Scientific Association for Gas and Water — approval for gas and water products to European standards.
FM Approvals, United States — approval for safety against fire and explosion.
Underwriters Laboratories — the international safety certification for industrial and electrical products.
Stock is held in Dubai and cleared through Jebel Ali for re-export across the region, or a container is shipped direct from Brazil to your own port where that lands cheaper. Both routes are costed on every enquiry, so the choice is made on one number.
The range is held in Dubai and cleared through Jebel Ali, so orders in the Emirates are supplied from stock already in the country: galvanised and black, 1/4in to 6in, in BSP and in NPT Class 150 and Class 300.
The threaded fittings are blackheart malleable cast iron in grade JMB 350-10, to ISO 5922, ABNT NBR 6590 and EN 1562. The fittings themselves are made to ABNT NBR 6943, ISO 49 and EN 10242. Ductile grades belong to the VERSABAR (FUCO) continuous cast bar range, not to the fittings.
The relevant fire protection figures are UL Listed and FM Approved, and the gas figures hold DVGW approval. Production is certified to ABNT and INMETRO in Brazil, under ISO 9001, ISO 14001 and ISO 45001, with Bureau Veritas inspection. The figure-by-figure list is on the FM and UL page.
Building services, water and most fire protection work in the Gulf is written to BSP, following EN 10242 and ISO 49. NPT to ANSI B16.3, in Class 150 and Class 300, appears on oil, gas and industrial work specified by American engineering contractors. Ordering one thread against a drawing written for the other is the commonest mistake we see.
Yes. A full container can go from Brazil straight to your port when that beats re-exporting from Dubai, and for a mixed order of many figures the Dubai stock usually wins. Send the figures, sizes and quantities and both routes are quoted.
The dimensions, weights and product codes for every figure are recorded in the official TUPY catalogue. Download the full BSP threaded fittings catalogue from the TUPY Brazil Download Centre, and see the press system specification in the TUPYPRES catalogue. All dimensions and weights are gathered in one place in the TUPY fittings dimension and weight tables.
TUPY fittings are manufactured to EN 10242, ISO 49 and ASTM A197. Each standard, the working pressure range it covers and where it applies are explained on the TUPY fittings standards page.
Amini Building Materials Trading L.L.C is the exclusive agent of TUPY S.A. for the Middle East, the Gulf, Turkey, the Caucasus and South Asia, holding stock in Dubai for delivery across the Gulf and Iraq. How the agency works and how to tell a genuine TUPY fitting from a copy are set out on the TUPY Middle East page.
Size selection, installation and comparisons between fitting types are published as articles on the TUPY Brazil fittings blog.
For stock position, lead time and pricing, send the figures and sizes you need through the request a quote page, or see the markets we supply on the TUPY Middle East page.
